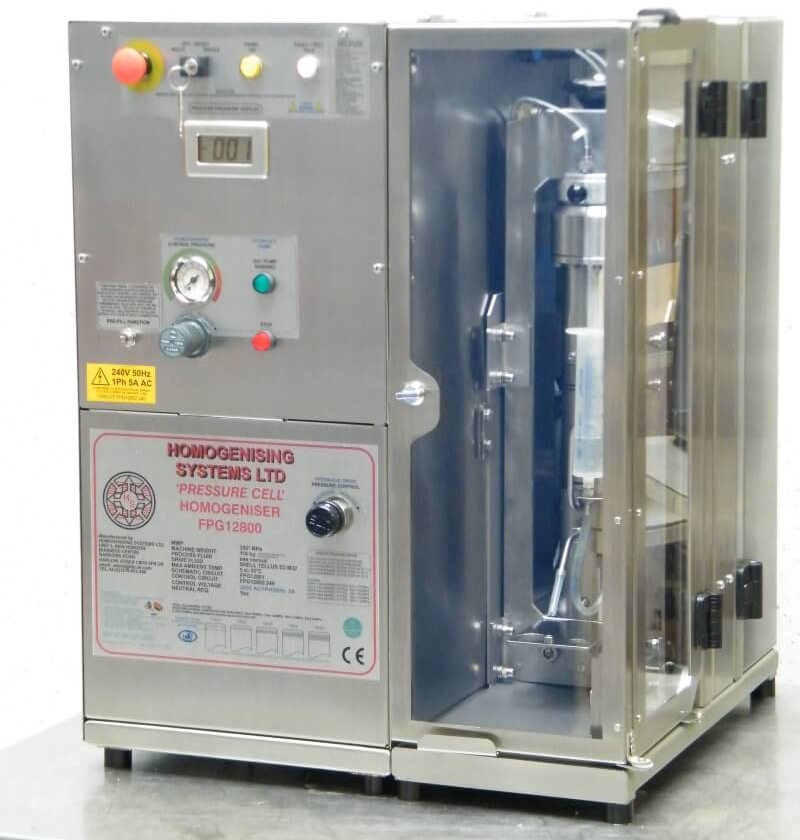

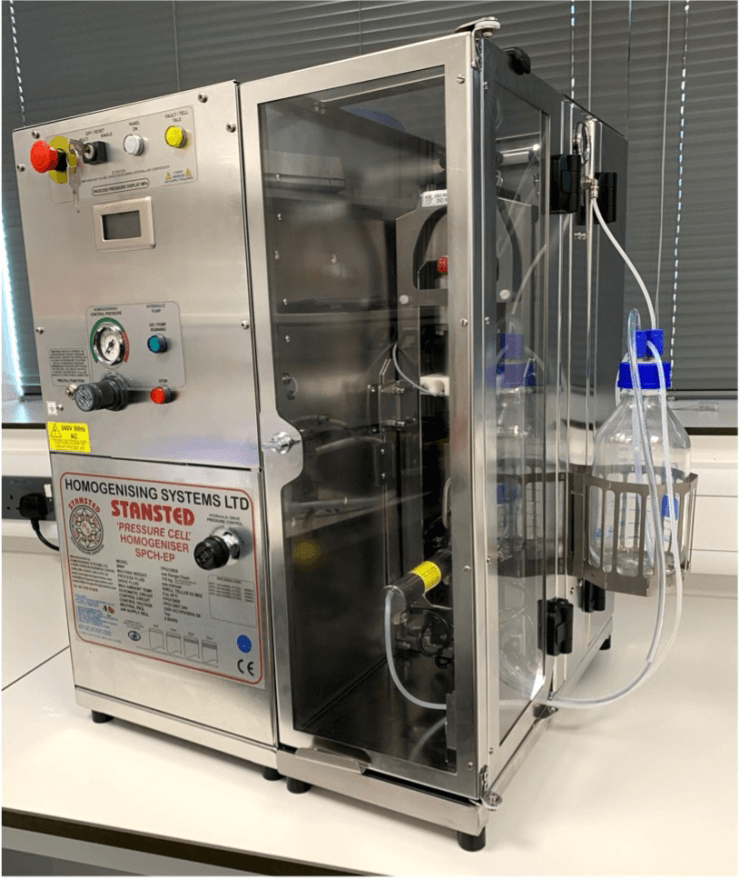

Pressure Cell Disruptors for Cell Lysis and homogenisation have been a long established and much loved instrument for researchers; this modern system incorporates this technology into a new higher performance, safety interlocked system.
A versatile and replacement for the French Press ® type Cell Disruptor. Easy to use with repeatable results for multiple applications including Cell Lysis, Liposome preparation, Nanoemulsions and Dispersions.
'Pressure Cell' Homogenizer - Features
Adjustable pressure from 1,500 psi (103 bar) to 60,000 psi 4100 bar.
Easy to use and clean with low operating costs and microprocessor control.
Flow rates from 1m to 275ml per minute / 16 L per hour.
A choice of different processing cell - sample sizes - 1 ml, 10 ml, 18 ml and 35 ml. Single shot and continuous cycling modes.
Multiple options for temperature control - both pre-processing and post processing.
For quick contact please click the 'Ask a Question' or 'Leave a message' tab.
Improved processing for multiple applications
Cell Lysis - Disruption for E.coli, yeasts, Staph. A, mammalian cells, etc ...
Liposome preparation.
Particle Size Reduction - Nanoparticles.
Nanoemulsions.
Microemulsions
Solid Lipid Nanoparticles - SLNs.
Dispersions.
Suspensions.
Cell Homogenizer Models

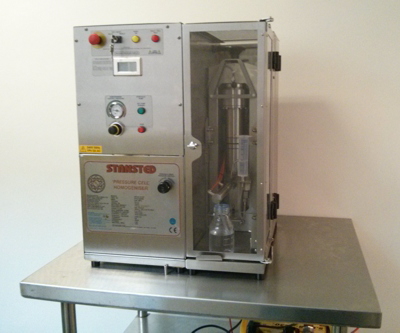

Cell Homogenizer on supplied trolley mount
Dimensions and Weight
(basic configuration)
Weight approx. 125 kg (275 lb)
Width approx. 550mm (21.7″)
Depth approx. 600mm (23.6″)
