Our industry-leading High Pressure technology provides a highly efficient method for the Cell Lysis of E. coli whilst maintaining intracellular contents purity and increasing yield.

Our scalable systems range from Lab instruments to full production models with sophisticated temperature control and processing pressures.


E. coli - High Pressure Homogenization (HPH)

Escherichia coli (E. coli) is used in many projects in multiple applications where bacterial lysates and cell proteins are utilized, for example in the Biopharma sector.

Cell Lysis (Disruption) it the technique used to gain access to the cell contents in the form of the lysate obtained. Our high pressure technology has some advantages when compared to other techniquest including enzymatic lysis and sonication.

Benefits and features of our HPH technology

Adjustable process pressure from 1,500 psi (10 MPa) to 60,000 psi (410 MPa) with reproducible results.

Variable flow rates from 1m samples to 275ml per minute -> 16 l/h to 130 l/h to 1000 l/h.

For Lab use - processing cells - samples - 1 ml, 10 ml, 18 ml and 35 ml.

Multiple options for temperature control including cooling and heating.

Easy to operate, clean and sterlized with low maintenance costs.

For quick contact please click the 'Ask a Question' or 'Leave a message' tab.

Lab Scale

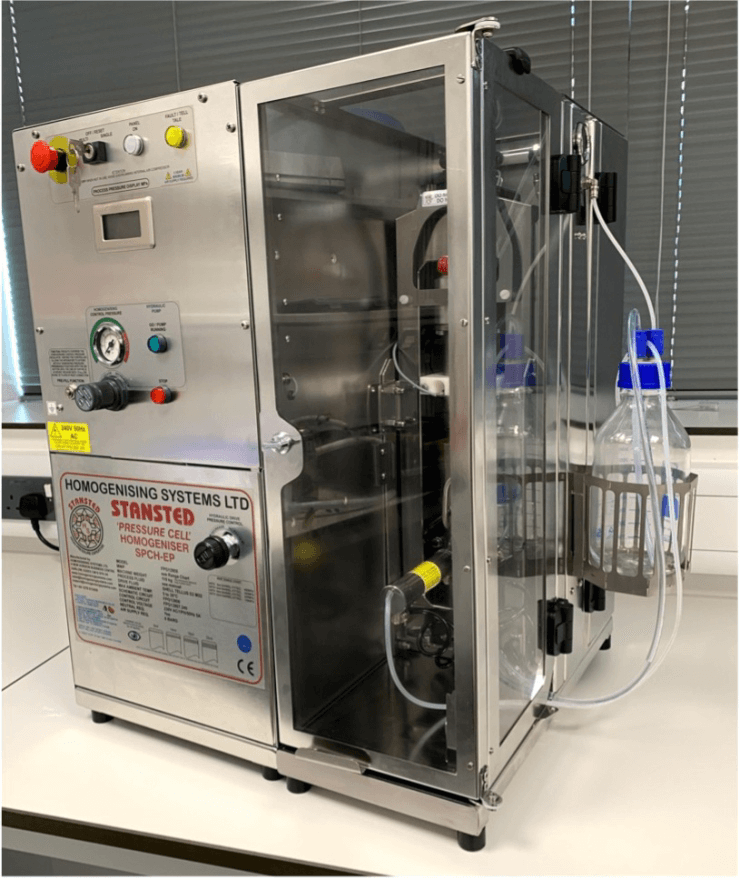

Cell Disruptor used for E. coli Cell Lysis.

Production Scale

Production Homogenizer - India -E. coli Cell Lysis.

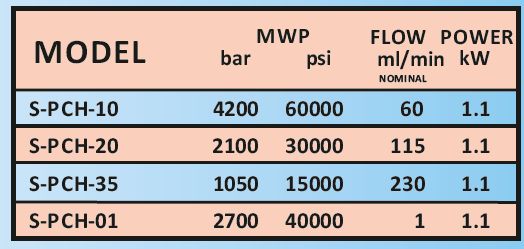

Laboratory Cell Homogenizer Models

Pressure in bar and psi and flow rate in ml per minute<>

Pressure in bar and psi and flow rate in ml per minute<>

Cell Homogenizer on trolley mount

Dimensions and Weight

(basic configuration)
Weight approx. 125 kg (275 lb).

Height approx. 670mm (26.7″).
Width approx. 550mm (21.7″).
Depth approx. 600mm (23.6″).
